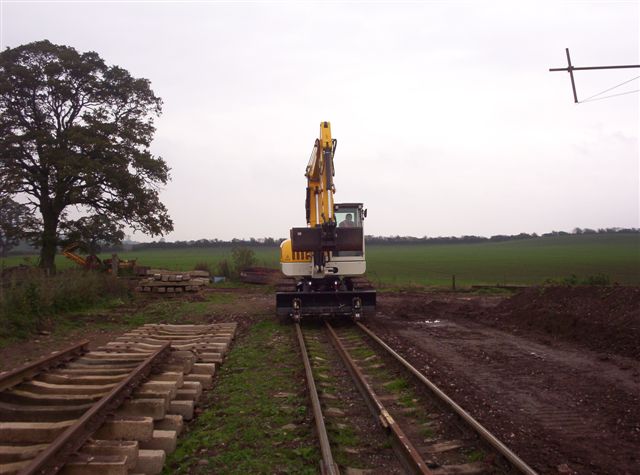

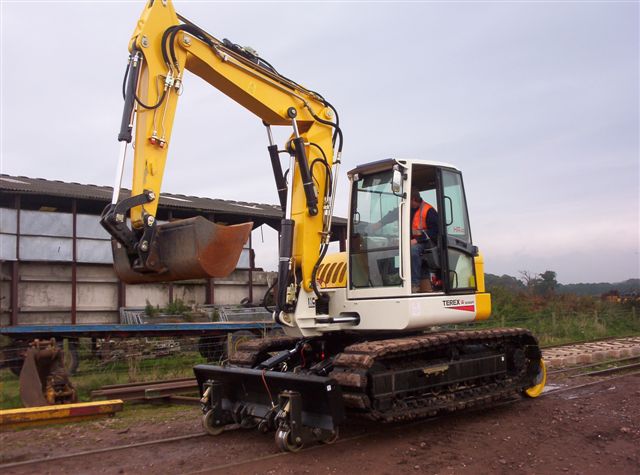

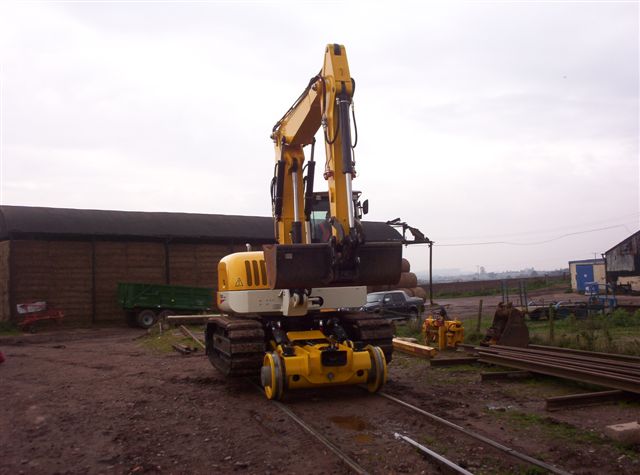

TEREX HR42 Tracked rail Excavator

Supplied By Loadex LTD







·   Fitted with two piece articulated boom (to enable the machine to work capably under low overheads or where height is restricted)

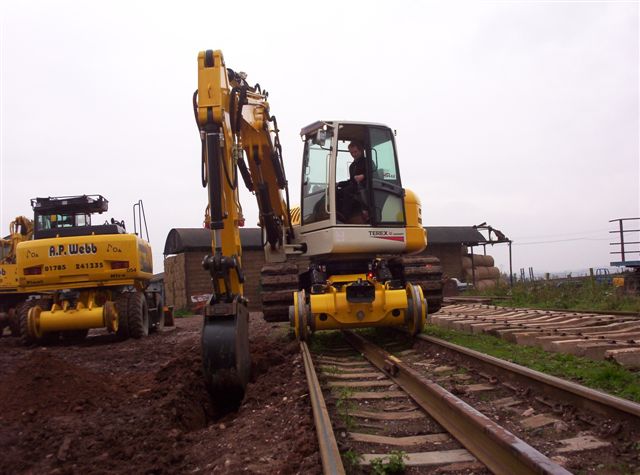

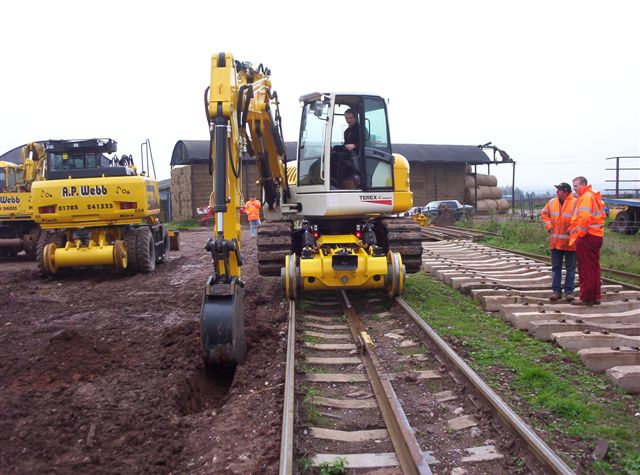

·   Lower Offset Arm Knuckle (for offset digging from both on and off the rail ideal for drainage works)



·   Zero Tail Swing (to enable the machine to work in tight areas such as in station platforms, tunnels, under bridges etc.)



·   Steel Tracks with Rubber Pads not exceeding 2.6m overall excavator width. All within W6 gauge (Providing all the strength and integrity of a steel track whilst protecting the rail head from damage.)



·   Rail Gear Axel locks system (for enhanced stability on rail)



·   Circuits for hydraulic work attachments (grabs, clamshell buckets, breakers etc.)



·   Quick hitch (for fast interchange of attachments)





·   Fitted with hydraulic boom height and slew lock limitation. (To prevent the machine fouling proximity hazards)



·   Additional Lighting kit for Cab (for enhanced work area illumination)



·   Fitted with hose rupture safety valves and load retaining valves for boom plus additional check Valves for 2nd stage boom, Dipper, blade and rail gear.



·   ASLI Optional (for lifting duties on rail)

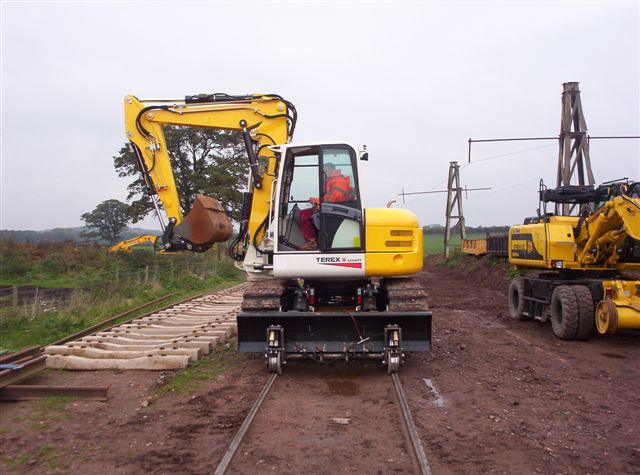

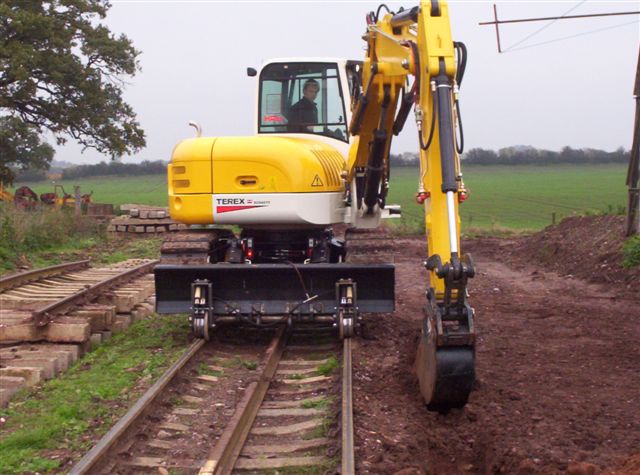

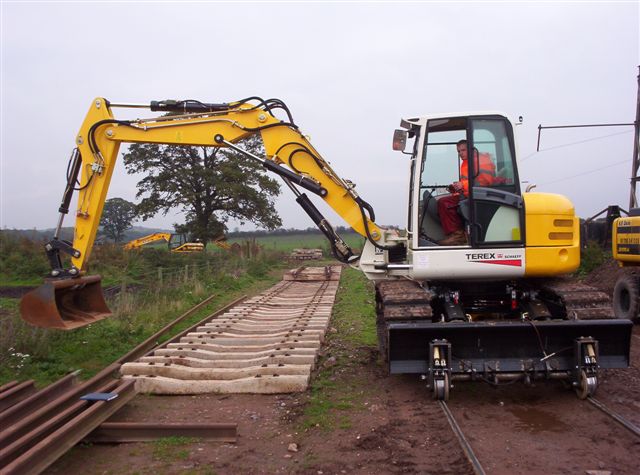

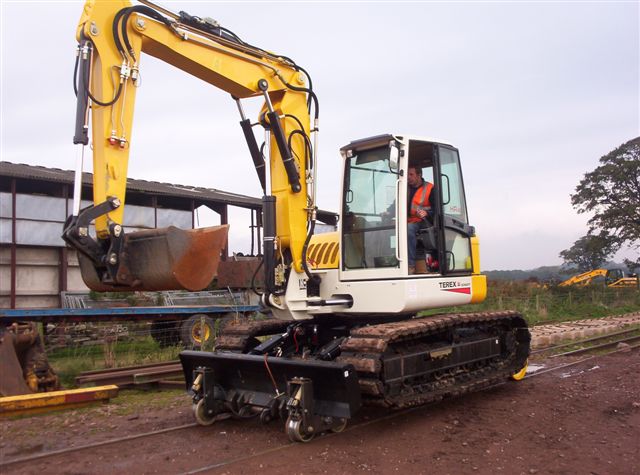

·         OPTION 1:       2 Wheel Drive with blade



·   2WD hydraulically driven rail gear, rear end only, with braked rail bogie under blade end

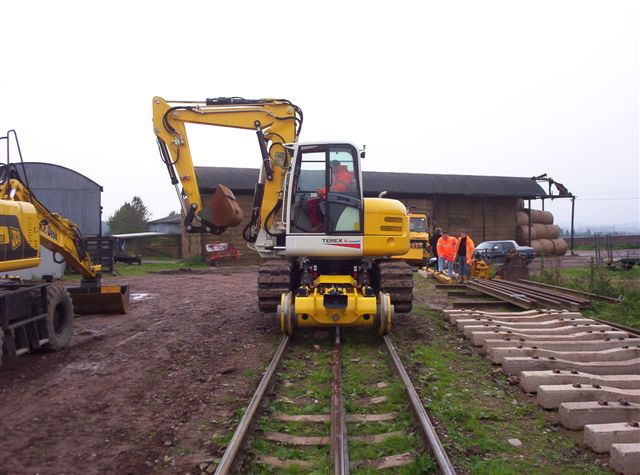

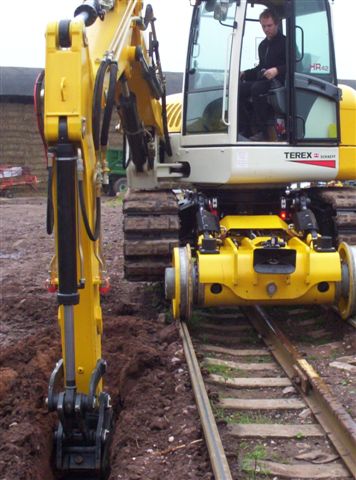

·   OPTION 2:       4 Wheel Drive without blade



·   4WD hydraulically driven rail gear, front and rear driven axels without blade
